YSC
PowerScope M400 offers High Resolution Digital/Video
Inspection and Measurement System with zoom
range from 10X to 400X using changeable lens
adapters. The system is ideal for inspection,
documentation and measurement of micro electronics,
SMT, wafer and semiconductor applications.
Both coaxial and ring lighting options are
available. The system can be configured with
our video measurement software and ImagePower
System for image Multi-Focusing and Tiling,
and other video accessories. Various stand
and X-Y-Z stages (manual or motorized) can
be used, and tilting stage is available for
viewing object at an oblique 3D angle. |
| YSC PowerScope M400 Actual Images |
 |
|
 |
|
 |
|
 |
Bad Placement 33X |
|
Bent Pins 33X |
|
Blade 66X |
|
Business Card 70X |
 |
|
 |
|
 |
|
 |
Cold Solder Angle View 44X |
|
Flatten Wire 200X |
|
Hybrid 33X |
|
J Lead Crack 44X |
 |
|
 |
|
 |
|
 |
Metal Molded Part 33X |
|
Mis-alignment 33X |
|
Missing Component 33X |
|
Probe Card 33X |
 |
|
 |
|
 |
|
 |
QFP 80X |
|
Stencil 88X |
|
Transducer 200X |
|
Wire Bond 133X |
| Video Accessories |
|
|
|
|
ImagePower System for Measurement,
Multi-Focus and Tiling |
Video Measurement Software |
Flat Panel Computer Monito |
Flat Panel LCD Monitor |
|
|
|
|
Video Capture and Display Card
|
Portable Sony Memory Stick
and Video Recorder |
Video Printer |
Various Stand Options |
|
|
|
|
XY Stage for Double Sided
SMT Board |
Manual or Motorized XYZ
Measurement Stages |
Double Sided SMT Board XY
Stage |
Lighting Accessories |
|
|
|
|
|
|
|
|
|
|
|
|

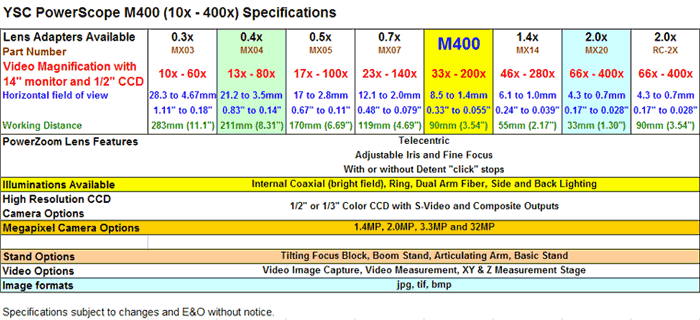

YSC PowerScope M400 (10x
- 400x) Specifications |
|
|
|
|
Lens Adapters Available |
0.3x |
0.4x |
0.5x |
0.7x |
M400 |
1.4x |
2.0x |
2.0x |
|
Part Number |
MX03 |
MX04 |
MX05 |
MX07 |
MX14 |
MX20 |
RC-2X |
|
Video
Magnification with 14" monitor and 1/2" CCD camera |
10x - 60x |
13x - 80x |
17x - 100x |
23x - 140x |
33x - 200x |
46x - 280x |
66x - 400x |
66x - 400x |
|
Horizontal field of view |
28.3 to 4.67mm |
21.2 to 3.5mm |
17 to 2.8mm |
12.1 to 2.0mm |
8.5 to 1.4mm |
6.1 to 1.0mm |
4.3 to 0.7mm |
4.3 to 0.7mm |
|
|
1.11" to
0.18" |
0.83" to
0.14" |
0.67" to
0.11" |
0.48" to
0.079" |
0.33" to
0.055" |
0.24" to
0.039" |
0.17" to
0.028" |
0.17" to
0.028" |
|
Working Distance |
283mm (11.1") |
211mm (8.31") |
170mm (6.69") |
119mm (4.69") |
90mm (3.54") |
55mm (2.17") |
33mm (1.30") |
90mm (3.54") |
|
PowerZoom Lens Features |
Telecentric |
|
|
Adjustable Iris and Fine
Focus |
|
|
With or without Detent
"click" stops |
|
Illuminations Available |
Internal Coaxial (bright
field), Ring, Dual Arm Fiber, Side and Back Lighting |
|
High Resolution
CCD Camera Options |
1/2" or 1/3"
Color CCD with S-Video and Composite Outputs |
|
Megapixel Camera Options |
1.4MP, 2.0MP, 3.3MP and
32MP |
|
HD High Definition Cameras |
1080p and 1080i |
|
Stand Options |
Tilting Focus Block, Boom
Stand, Articulating Arm, Basic Stand |
|
Video Options |
Video Image Capture, Video
Measurement, XY & Z Measurement Stage |
|
Image formats |
jpg, tif, bmp |
|
|
|
Specifications subject to
changes and E&O without notice. |
|
|
|
|
|
|
|
|
|
|
|
|
YSC PowerScope M400 High Resolution Digital Video
Inspection Microscope and Measurement System with
10X to 400X magnification option is great for demanding
video inspection, documentation and measurement
for SMT, Semiconductor, Medical Device, BGA, microBGA,
CSP and Flip Chip packaging applications. The system
can be configured with optional SXGA or UXGA digital
video cameras, XY video measurement software, and
XY or XYZ Measurement Stage.
Request price quote for M400 system or call 510.226.0889 for immediate service.
