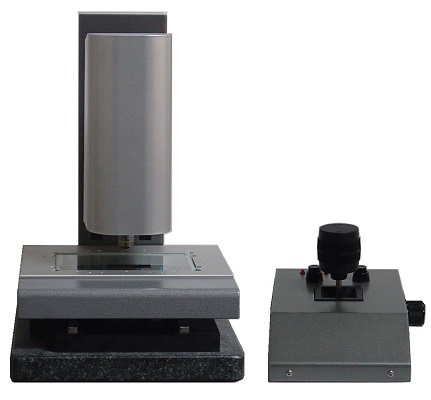

EZxxAV DCC Measuring System (Computer Control XYZ Precision Measurement)





Description

EZxxAV is powerful video based 3-axis, computer control, motorized measuring system. 3M digital camera captures rich color and sharp image and it improves the sub-pixel accuracy and throughput.

Other features include programmable lighting and software to support multiple programmable steps and maintain the magnification and calibrations.

The software has auto edge detection with sub-pixel resolution. It provides full CMM measuring capability. The stage and video mapping capabilities greatly improve the system measurement accuracy.


Highlights

High Resolution Digital Camera
High Precision Measurement
High Speed Processing
Multisensor
Powerful Software
Compact Design
Touchscreen Operation

Details

This system delivers the excellent performance in small footprint
Includes an enhanced software provides rich set of functions to handle applications across industries
Supports mega-pixel digital camera to achieve high image quality and superb measurement accuracy
Multi-sensor option and custom solutions
Convenient operation with optional touchscreen computer
Software works with 32 bit / 64 bit Windows 7 to provide an easy user interface.


System Features

Travel

8 (X) x 4 (Y) x 5 (Z) inch

Base

Granite

Encoder

0.5 um on XY
0.2 um on Z

Camera

3M color CCD digital camera

Optics

Navitar 6.5X detent zoom

Illumination

Programmable LED ring, LED sub-stage

L, Accuracy

XY E1 = 2.5 + 5L / 1000 um
Z E1 = 4 + 5L / 1000 um

Motion

Microstepping stepper

Software

Metrology software

Computer

Desktop PC with Winsows OS

Monitor

22" LCD

Operating System

Windows 7 Professional

Dimension

18 (W) x 30 (D) x 28 (H) inch

Warranty

1 year


Options

Encoder

0.1um and 0.01um

4th Axis

Rotary table

Camera

Up to 12M digital camera

Optics

12X detent, 12X motorized zoom.
2X, 5X, 10X or 20X objectives

Illumination

Co-axial, red LED

Computer

All-In-One with 23" touchscreen/portable

Monitor

Various sizes
