Description

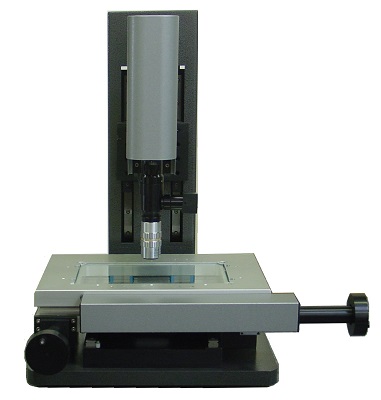

EZxxMV-AZ is powerful video based 3-axis manual measuring system. It has motorized Z-axis with auto-focus to measure Z height precisely. 3M digital camera captures rich color and sharp image and it improves the sub-pixel accuracy and throughput.

The system uses a dimensional measurement and imaging software. The software is designed for video manual measuring system with edge detection and part programming. It provides full video CMM measuring capability and is easy-to-learn.

The stage mapping capability greatly improves the system measurement accuracy. The software also provides broad imaging functions to have a value added on the system.

Highlights

High Resolution Digital Imaging
Precision XY & Height Measurement
Auto-focus
Sub-pixel Edge Detection
Turnkey Metrology Solution

Details

Digital readout (DRO) within the software
Clear sharp images with high resolution digital camera and quality optics
34-200X magnification with detent zoom optics for viewing and measuring small features
Annotation and image capture for failure analysis or part history documentation
Data analysis directly to Excel
Overlay features for comparison
Part profile export
WLCD flat panel monitor with Windows 7
Optional Touch Screen Operation
User friendly metrology software

System Features

Travel	8 (X) x 4 (Y) x 5 (Z) inch
Drive	Manual XYZ Motorized Z
Encoder	0.001 mm on XY 0.0002 mm on Z
Camera	3M color digital camera
Optics	0.7x-4.5x Navitar detent zoom
Lighting	Manual LED ring, coaxial & sub-stage
Software	Metrology software
Computer	Desktop PC with Winsows OS
Monitor	22" LCD
Operating System	Windows 7 Professional
Dimension	20 (W) x 26 (D) x 24 (H) inch
Warranty	1 year

Options

Base	Granite
Encoder	0.0005 or 0.0001 mm resolution
Objective	2X, 5X, 10, or 20X
Lighting	Programmable computer control
Computer	All-In-One/Portable
Monitor	22" Touchscreen
Camera	CCD/Digital Camera
