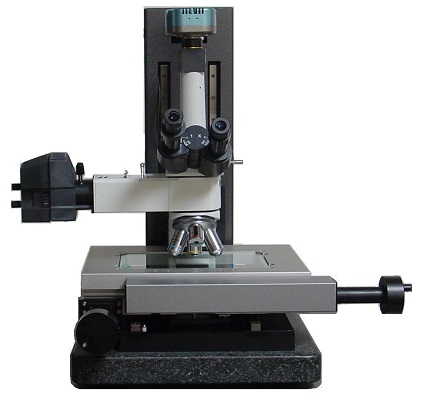

EZxxMV-MH1 Manual Measuring System With Auto-focus





Description

EZxxMV-MH1 is powerful video based 3-axis manual measuring system with microscope head. Motorized Z-axis with auto-focus and measure Z height precisely. 3M CCD digital camera captures rich color and sharp image and it improves the sub-pixel accuracy and throughput.

The system uses a dimensional measurement and imaging software. The software is designed for video manual measuring system with edge detection and part programming. It provides full video CMM measuring capability and is easy-to-learn.

The stage mapping capability greatly improves the system measurement accuracy. The software also provides broad imaging functions to have a value added on the system.


Highlights

High Resolution Digital Imaging
Precision XY & Height Measurement
Auto-focus
Sub-pixel Edge Detection
Turnkey Metrology Solution

Details

Digital readout (DRO) within the software
Clear sharp images with high resolution digital camera and quality optics
Multiple objectives & eyepieces
Annotation and image capture for failure analysis or part history documentation
Data analysis directly to Excel
Overlay features for comparison
Part profile export
WLCD flat panel monitor with Windows 7
Optional Touch Screen Operation
User friendly metrology software


System Features

Travel

8 (X) x 4 (Y) x 5 (Z) inch

Drive

Manual XYZ
Motorized Z

Encoder

0.0005 mm on XY
0.0002 mm on Z

Camera

1.4M color CCD digital camera

Optics

Microscope head with 10X eyepieces

MS1 Objective

4X, 10X, 20X, 40X

Lighting

Manual coaxial & sub-stage

Software

Metrology software

Computer

Desktop PC with Winsows OS

Monitor

22" LCD

Operating System

Windows 7 Professional

Dimension

20 (W) x 26 (D) x 24 (H) inch

Warranty

1 year


Options

Base

Granite

Encoder

0.0001 mm resolution

Objective

2X, 5X, 10, or 20X

Lighting

Programmable computer control

Computer

All-In-One/Portable

Monitor

22" Touchscreen

Camera

CCD/CMOS Digital Camera

Request Info
