digital microscope HD801
3D & 2D Digital Microscope and Measurement Systems
HD802 HD High Definition 1080p Digital Microscope 7x—1676x

  • HD802-LABM22 with SD Card to Save 6 MP Image and 1080p Video (USB Measurement Option)22 inch HD 1080p Monitor, Articulating Arm Stand and LED Ring Light Included.(USB Connection/Measurement Available)
  • HD802-LUSM22 with SD Card to Save 6 MP Image and 1080p Video (USB Measurement Option)22 inch HD 1080p Monitor, Universal Stand and LED Ring Light Included.(USB Connection/Measurement Available)
  • HD802-LBSM22 with SD Card to Save 6 MP Image and 1080p Video (USB Measurement Option)22 inch HD 1080p Monitor, Basic Stand and LED Ring Light Included.(USB Connection/Measurement Available) XY Measurement Stage Option Shown
  • HD802-LBSBLM22 with SD Card to Save 6 MP Image and 1080p Video (USB Measurement Option)22 inch HD 1080p Monitor, Back Lighting Stand and LED Ring Light Included.(USB Connection/Measurement Available) XY Measurement Stage Option Shown



The YSC HD802 is a powerful HD high definition digital microscope that uses the most advanced high definition digital camera technology to deliver full 1080p resolution in HD quality and full motion video at 60 frames per second with no lag time. The HD802 has a magnification range of 7x-1676x on a 24" HD monitor, and 3x-884x on a 12" monitor, with long working distance ranges of 1.8" to 13".

The lens offers superior resolution with internal focus and iris adjustments. Detent click stop feature is available for video measure-ment applications, and the non detent click stop version is also available for general applications. For bright field coaxial lighting application, customers can configure lens with an internal coaxial lighting port. Various cameras (color, CCD, USB megapixel from 1.3MP—32MP), VGA output, HDMI output, Internal SD memory and HD high definition), lighting (LED, halogen and fluorescent) and stand options can be configured for your system.

The HD802 is integrated with the HD800 camera, which can capture image and record video directly into a micro SD card. The HD800 captures images at 6 megapixels (3264x1836) and records motion HD videos at 1080p. The camera now offers integrated measurement tools that allows you to do measurements without connection to PC. More information on the integrated measurement software can be found on our HD802 product page on our new website.. Although no computer is required for this set up, the USB output option is still available for direct connection to computers if you still prefer use measurement software or capture images and videos directly onto PC.

We have recently released our new HD806 digital microscope model, which will eventually replace our HD802 model. In addition to having similar features to the HD802, the HD806 also has detent click stops, telecentric features, and other optional add-on accessories to further customize the system to your needs. Optional add-on accessories include 3D viewing attachment, turret for high power objectives, coaxial lighting port, and a monocular eyepiece. More information can be found on the HD806 product page.


Applications

· Assembly
· Production
· Quality Control
· Failure Analysis
· Process Control
· Measurement
· SMT
· Electronics
· Medical Device
· Machining
· Aerospace
· Natural Science
· Training
· Documentation

Benefits

✔ High Definition HD 1080p digital microscope
✔ Healthy Ergonomics: Less eye fatigue and neck stress
✔ Great Depth of Field
✔ Long Working distance Option Available
✔ Adjustable Viewing Angles (with tilting stand option)
✔ Real Time Full Motion HD1080p 60fps
HD Video Display
· Large 24” HD monitor for discussion or training purposes
· Save images with 6 megapixel resolution to micro SD card
· HD 1080p video motion can be recorded
· Wide zoom ratio with constant focus
· Full camera, lens and lighting adjustments
· XY measurement stage options available
· Internal micro SD card for direct image and video recording (NO computer needed)
· Different stand options
· Adjustable high intensity LEDs
· Fluorescent or halogen lighting options
· Measurement software option

HD802 With Articulating Arm

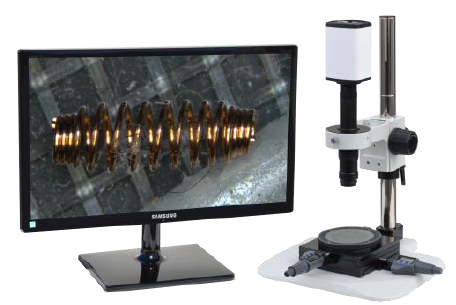

HD802 With Basic Stand
& XY Measurement Stage

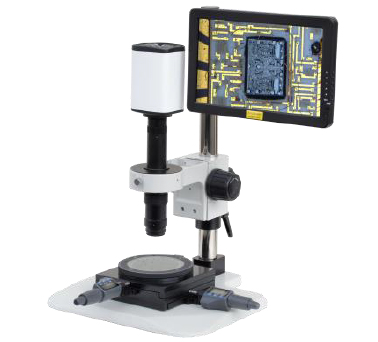

HD802 With 10" Monitor
& XY Measurement Stage
HD802 with Universal Boom Stand HD802 with 10" Monitor
On Universal Boom Stand

Technical Specifications

Adapter: 0.3x 0.5x 0.75x 1x (standard) 1.5x 2x
Video Magnification on 22" Monitor: 20x - 126x 33x - 210x 49x - 314x 65x - 419x 98x - 629x 130x - 838x
Field of View (Diagonal):

28.6mm - 4.4mm

1.12" - 0.175"

17.1mm - 2.7mm

0.675" - 0.105"

11.4mm - 1.8mm

0.450" - 0.070"

8.6mm - 1.3mm

0.337" - 0.052"

5.7mm - 0.9mm

0.225" - 0.035"

4.3mm - 0.7mm

0.169" - 0.026"

Working 331 mm (13.0")
199 mm (7.8") 131 mm (5.2") 97 mm (3.8") 61 mm (2.4") 46 mm (1.8")

* Optional rear couplers are available (0.35x, 0.5x, 0.75x, 1.5x, 2x) for lowering or increasing the magnification without changing

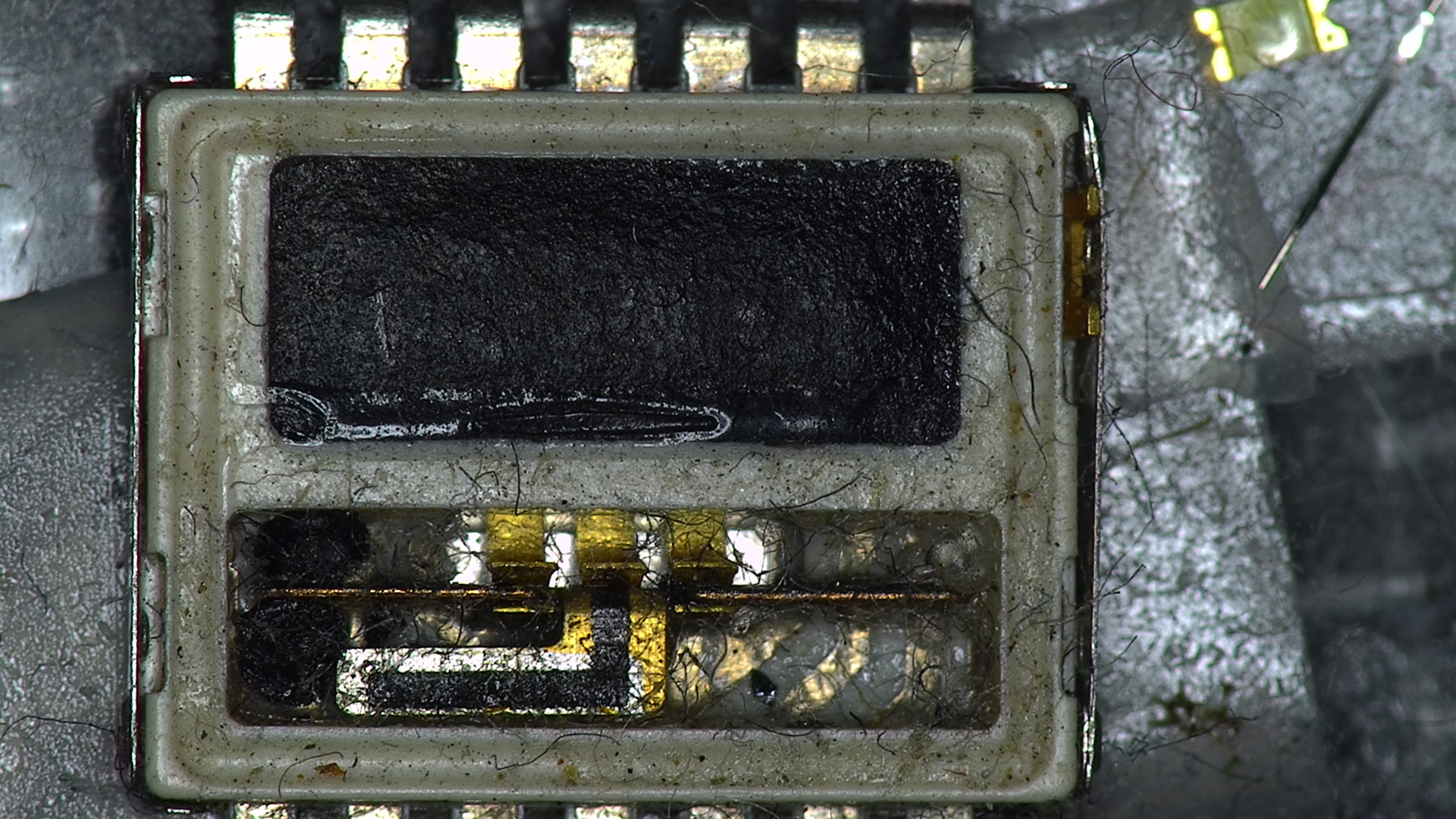

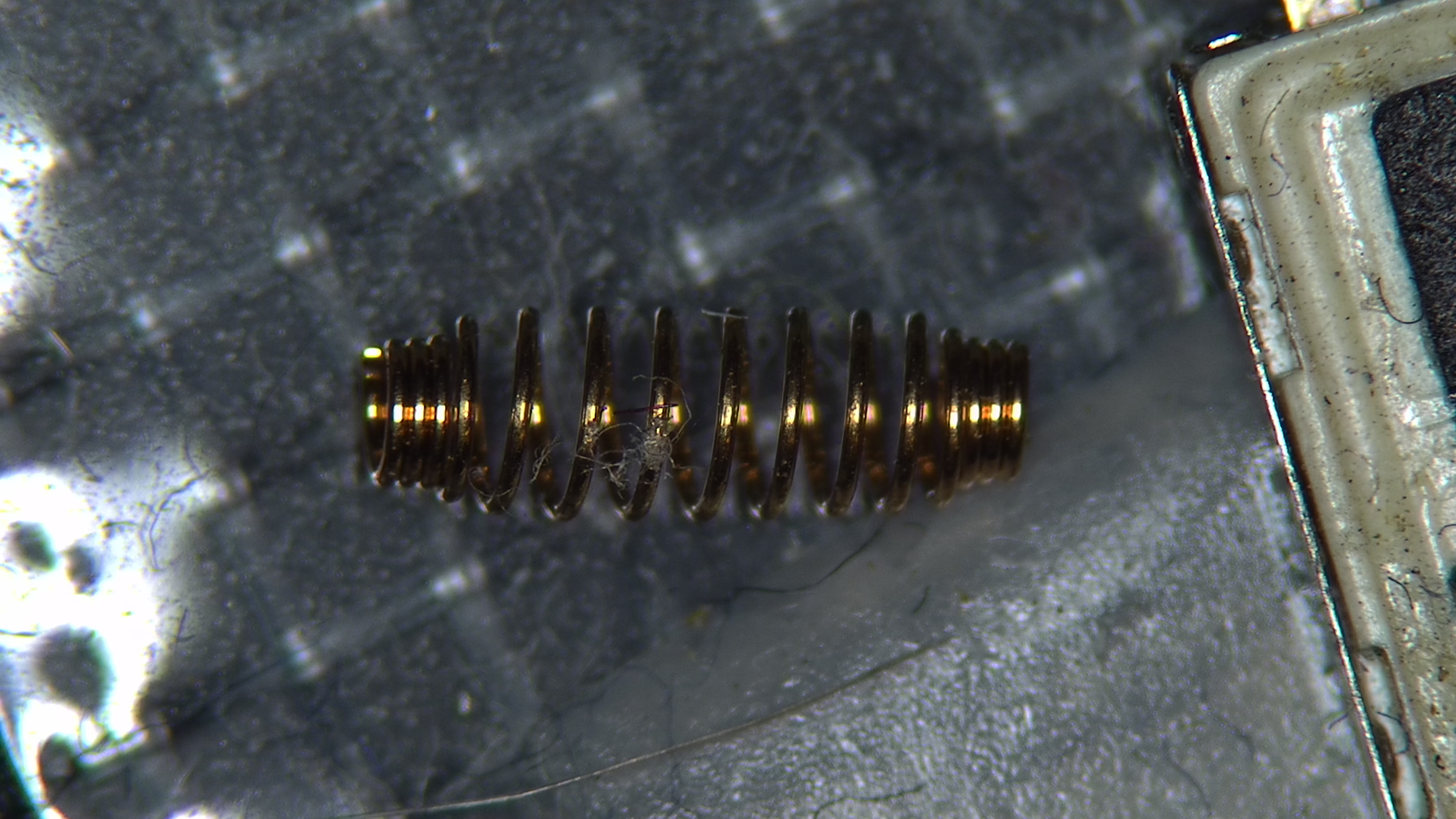

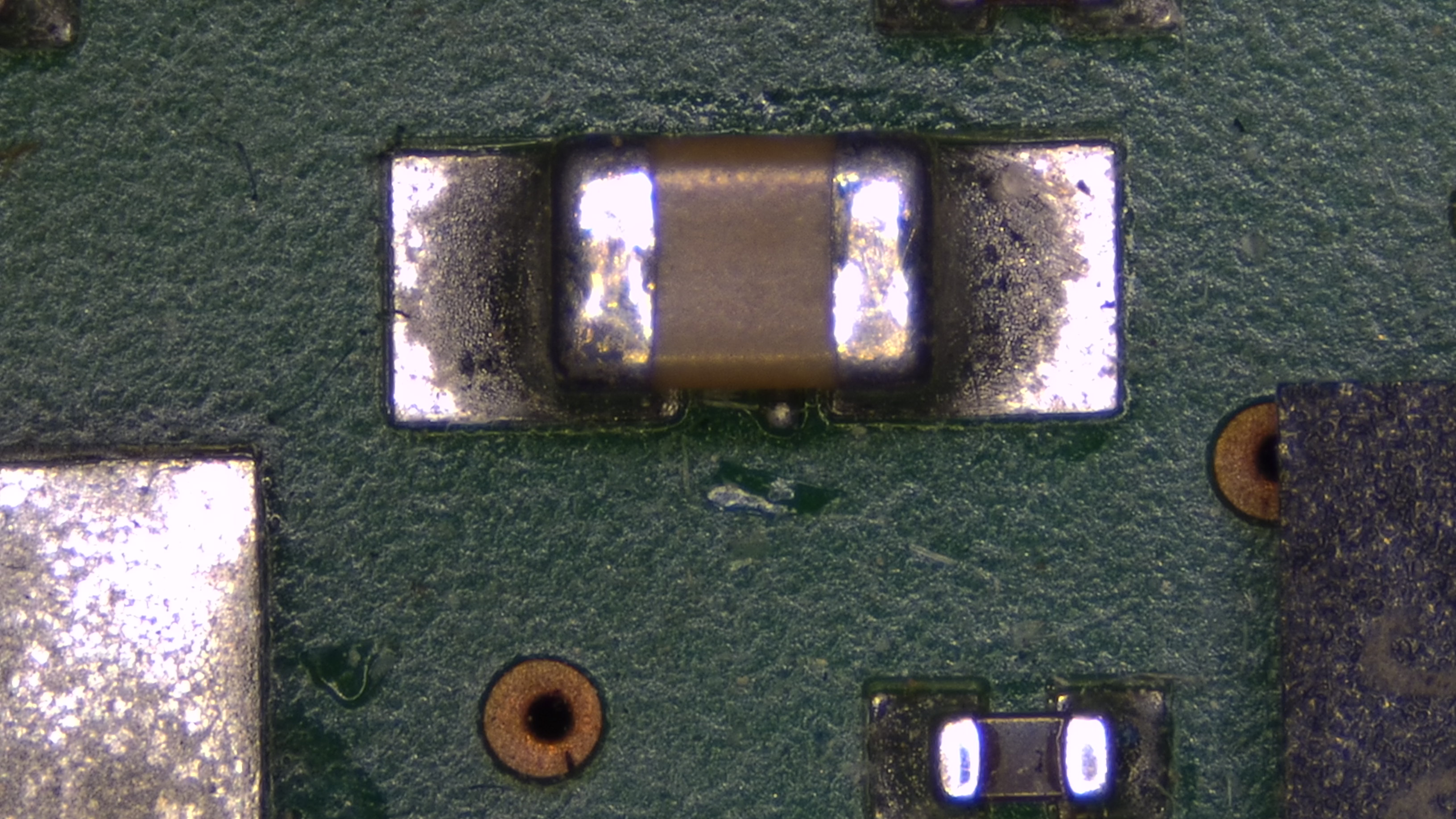

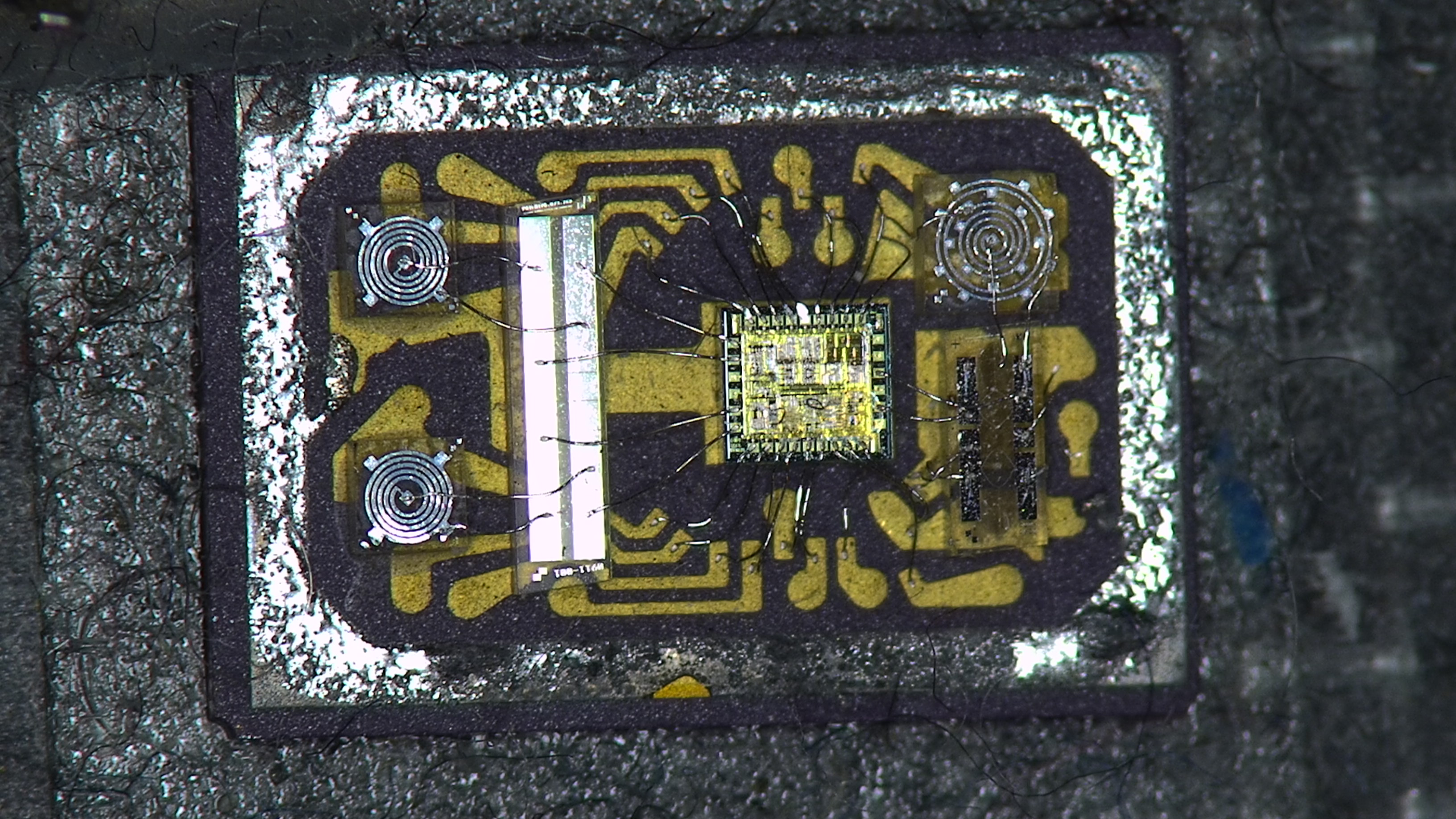

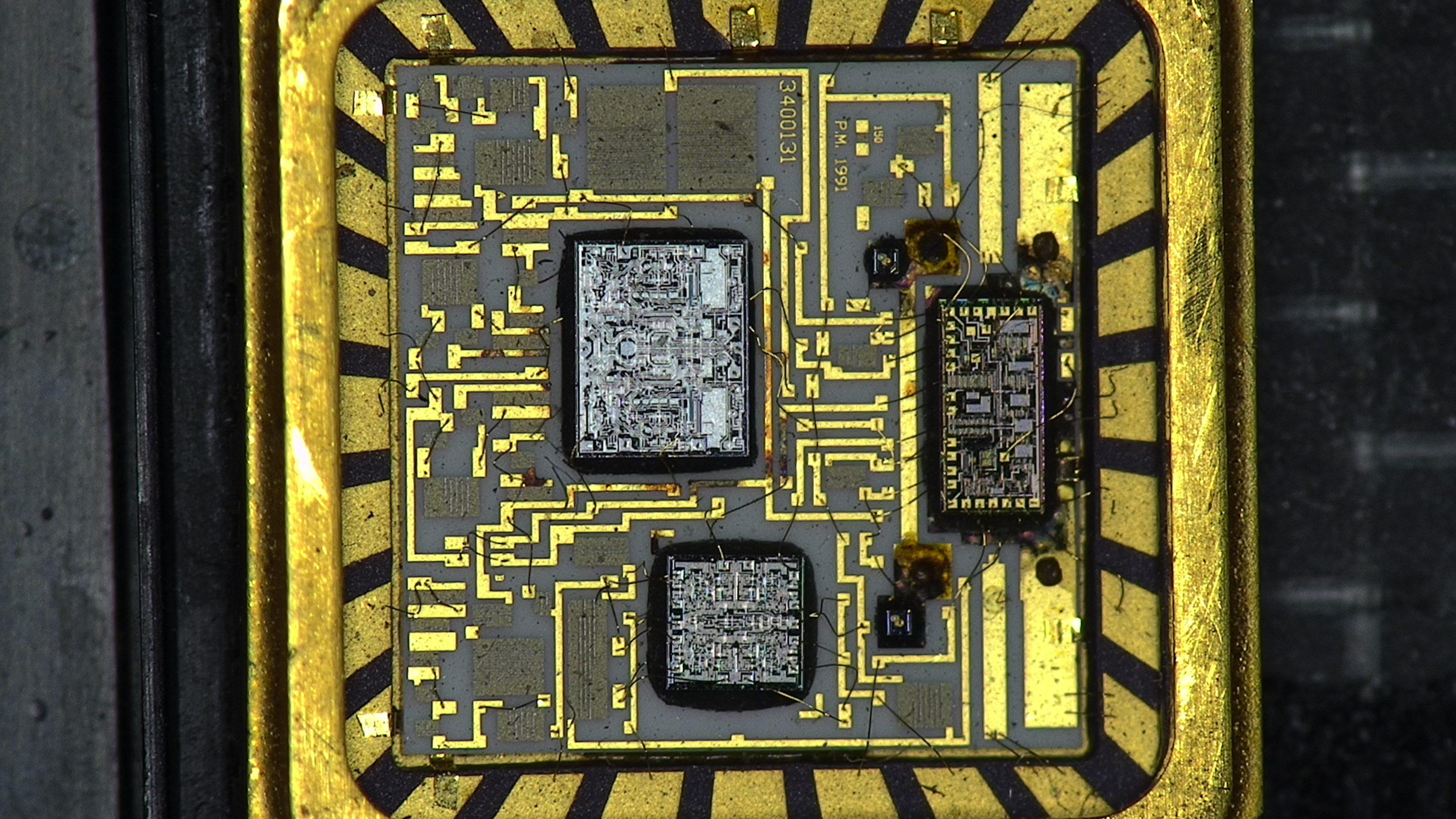

Actual images are captured at 6 megapixels (3264x1836). Click the thumbnail to expand.
