digital microscope HD801
3D & 2D Digital Microscope and Measurement Systems

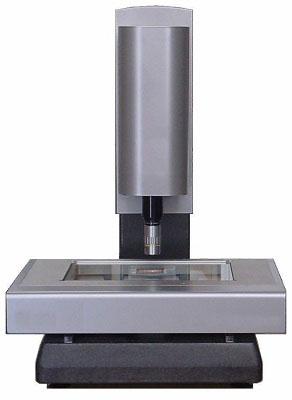

MaxV0808AV/1208AV DCC Measuring System (Computer Control XYZ Precision Measurement)





Description

MaxV0808AV and MaxV1208AV are desktop video based 3-axis, computer control, motorized measuring systems. They has high stage resolution. 3M digital camera captures rich color and sharp image and it improves the sub-pixel accuracy and throughput.

Other features include programmable lighting and software to support multiple programmable steps and maintain the magnification and calibrations.

Includes enhanced software has auto edge detection with sub-pixel resolution. It provides full CMM measuring capability. The stage and video mapping capabilities greatly improve the system measurement accuracy.


Highlights

High Precision
Multisensor
Powerful Features

Details

This system delivers the best performance in its class, speed and repeatability
The enhanced software provides rich set of functions to handle applications across industries
Supports mega-pixel digital camera to achieve high image quality and superb measurement accuracy
Multi-sensor option and custom solutions


System Features

Travel

MaxV0808: 8(X) x 8 (Y) x 6 (Z) inch
MaxV1208 12 (X) x 8 (Y) x 6 (Z) inch

Resolution

Linear scale 0.1 um (XYZ)

Camera

1360 x 1024 CCD digital camera /
NTSC CCD camera

Optics

0.7x-4.5x programmable zoom

Illumination

Programmable LED ring, LED co-axial, LED sub-stage

L, Accuracy

XY E1 = 2.0 + 5L / 1000 um
Z E1 = 2.5 + 5L / 1000 um

Motion

Microstepping stepper

Software

Metrology Software

Operating System

Windows 7/8 Professional

Monitor

22" WLCD

Dimension

MaxV0808: 18 (W) x 28 (H) x 30 (D) inch
MaxV1208: 22 (W) x 28 (H) x 30 (D) inch

Warranty

1 year


Options

Encoder

0.01 um

Z Axis Travel

8 inch (200 mm)

4th Axis

Rotary table

Computer

All-In-One/Portable

Height Sensor

Up to 10nm resolution.
Laser, white light or con-focal

Camera

Up to 12M digital camera

Optics

2X, 5X, 10X or 20X objectives

Illumination

Red LED

Request Info
