MaxV1212AV DCC Measuring System (Computer Control XYZ Precision Measurement)





Description

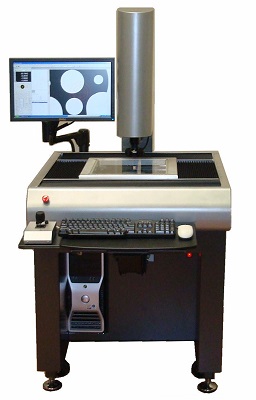

MaxV1212AV is a video based 3-axis, computer control, motorized measuring systems. It has high stage resolution. 3M digital camera captures rich color and sharp image and it improves the sub-pixel accuracy and throughput.

Other features include programmable lighting and software to support multiple programmable steps and maintain the magnification and calibrations.

Includes enhanced software has auto edge detection with sub-pixel resolution. It provides full CMM measuring capability. The stage and video mapping capabilities greatly improve the system measurement accuracy.


Highlights

High Precision
Multisensor
Side, front or bottom View Cameras
Granite base, column, anti-vibration isolation

Details

This system delivers the best performance in its class, speed and repeatability
The enhanced software provides rich set of functions to handle applications across industries
Supports mega-pixel digital camera to achieve high image quality and superb measurement accuracy
Multi-sensor option and custom solutions
Only supplier of side view camera option enables to measure from side view with/without referring to top view. The system can measure offset and thickness with bottom view camera option.


System Features

Travel

12 (X) x 12 (Y) x 6 (Z) inch

Resolution

Linear scale 0.1 um (XYZ)

Camera

2048 x 1536 digital camera / NTSC CCD camera

Optics

0.58X-7X programmable zoom

Illumination

Programmable LED ring, LED co-axial, LED sub-stage
LED low angle project

L, Accuracy

XY E1 = 1.7 + 5L / 1000 um
Z E1 = 2.5 + 5L / 1000 um

Motion

Microstepping stepper

Software

Metrology Software

Operating System

Windows 7

Monitor

20" WLCD

Dimension

32 (W) x 70 (H) x 39 (D) inch

Warranty

1 year


Options

Encoder

0.01 um

Z Axis Travel

8 inch (200 mm)

4th Axis

Rotary table

Height Sensor

Up to 10nm resolution.
Laser, white light or con-focal

Camera

Up to 12M digital camera

Optics

2X, 5X, 10X or 20X objectives

Motion

Digital Servo

Touch Probe

Renishaw TP20

Request Info
