OneTouch-LV Digital Measuring Scope





Description

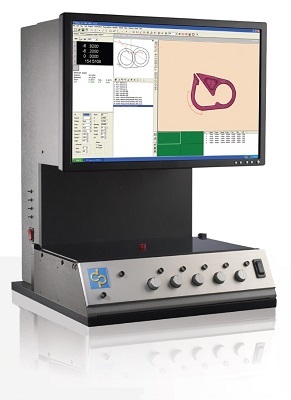

OneTouch-LV is a large view FOV optical metrology system to measure and inspect small size (typical size 1 inch) part overall dimension. The system features Large FOV telecentric optics, high Resolution digital camera, unique lighting and powerful software in a compact station.

The system is quick to setup, easy to operate, low cost to own and result is precise. You can use the software general purpose functions to create program and measure complicate part, or use dedicate AutoCheck functions for immediate measurement. Either way, simply push a button to start the measurement.


Highlights

Eliminate keyboard and mouse for basic operation
Single button operation
Ultra-fast auto measurement
Knob control crosshair move and rotation
Button control DRO reset
Factory calibration & mapping
Pattern matching part alignment for placement offset and orientation
Ultra-sharp image and zoom-in window for easy alignment
Multiple section LED illumination
Multiple built-in templates
Easy AutoCheck measurement
Master part image comparison
DXF drawing , text, graphics and image overlay
Capable of saving image or video
All in one design. Compact size

Features

Instantaneous full screen image analysis
OneTouch-LV is designed to measure and inspect the overall dimensions of small parts.
With one touch of a button all the dimensional analysis you need is accomplished according to your measuring specifications and reported the way you want it.

Alignment and datum orientation are established automatically
Within the field of view, regardless of orientation, the part program auomatically locates the datum features. Time-consuming part alignment procedures are entirely eliminated.

Easy to Program
The hours of programming time and test required by point to point measuring systems is a thing of past. Piece parts can be easily programmed.

Instant Result Reporting
High level reporting options allow you to configure measuring results in your format.

Designed for a wide variety of applications
Plastic parts, electronic and peripheral parts, medical parts, metal working, etc


Standard

Options

Magnification

0.16X

0.25X

0.5X

0.18X-1.13X

Field of View (mm)

40

25.6

12.8

45-7

Working Distance (mm)

175

160

120

175

Depth of Field (mm)

+/- 19.7

+/- 8.2

+/- 2.1



Pixel Resolution (um)*

20

12.8

6.4

17.5 - 2.7

Accuracy with
Edge Detection (um)*

+/- 5

+/- 4

+/-3

+/-5 - +/-3

* Using a 3MP Digital Camera


Standard Configuration

2548 x 1536 color digital image resolution
0.16X telecentric optics
Measure size up to 32 mm x 24 mm
75mm Z-axis travel with joystick control
+/-5um accuracy with auto-edge detection
20 inch WLCD screen
Configurable push buttons
One touch to perform auto programming measurement
6 section LED top light
Collimated back light
Metrology & imaging software
Extra small form, desktop PC computer
Dimension (in): 19 (W) x 25 (H) x 18 (D)


Options

Variety of telecentric lens or motorized zoom lens choices
X, Y and rotation crosshair control
24 inch WLCD monitor

Request Info
