Zoom 6000



Zoom6000SystemDiagram.pdf

Zoom6000Dimensions.pdf

Zoom6000Spec.pdf

Zoom6000Matrix.pdf

 The Zoom 6000 is Navitar’s workhorse with unbeatable versatility.

Offering a diverse selection of body tubes, accessory optics, motorized configurations and lighting techniques, this modular zoom lens system has Navitar’s world-renowned optic built in and the “building block design” can be configured to fit nearly any application. The parfocal optical system of the Zoom 6000 has a 6.5:1 zoom ratio, a 0.7X to 4.5X zoom range, and total magnification (depending on lens adapters and attachments used) of 0.08X to 212X. The working distance can be varied from 36 mm (1.5″) to 356 mm (14″). The achievable field of view can vary from 0.02 mm to 125.68 mm.

Features include:

• Dynamic magnification range of 0.08-212X offers incredible versatility

• High contrast images and vivid colors help your equipment perform better.

• 0.02-125.68 mm field coverage allows you to view a wide range of parts.

• Working distance can be varied from 36 to 356 mm.

• Add infinity corrected objective lenses to achieve unmatched edge flatness and clarity.

Body Tubes

The Zoom 6000 system body tube contains the core zoom mechanism and determines the mechanical nature of your zoom system. Body Tubes may be zoom or non-zoom configurations.

Options include:

Manual Zoom Modules

Apertures

Detents

Fine Focus

Coaxial Illumination

Specifications

P/n Description
1-6265 6.5X Zoom
1-6265A 6.5X Zoom, Aperture
1-6265D 6.5X Zoom, Detent
1-6265AD 6.5X Zoom, Aperture, Detent
1-60123 6.5X Zoom, 3 mm FF, Coax
1-60123A 6.5X Zoom, Coax, Aperture
1-60123D 6.5X Zoom, Coax, Detent
1-60123AD 6.5X Zoom, Coax, Aperture, Detent
1-6232 6.5X Zoom, 3 mm FF
1-6232A 6.5X Zoom, 3 mm FF, Aperture
1-6232D 6.5X Zoom, 3 mm FF, Detent
1-6232AD 6.5X Zoom, 3 mm FF, Aperture, Detent
1-60135 6.5X Zoom, 12 mm FF
1-60135A 6.5X Zoom, 12 mm FF, Aperture
1-60135D 6.5X Zoom, 12 mm FF, Detent
1-60135AD 6.5X Zoom, 12 mm FF, Aperture, Detent

Body Tubes, UltraZoom

Designed to be coupled to infinity corrected objectives when highe magnification and higher resolution imaging is required

Specifications

P/n Description
1-60349 6.5X UltraZoom, non FF
1-60349A 6.5X UltraZoom, non FF, Aperture
1-60349D 6.5X UltraZoom, non FF, Dentent
1-60349AD 6.5X UltraZoom, non FF, Aperture, Dentent
1-60350 6.5X UltraZoom, Coax
1-60350A 6.5X UltraZoom, Aperture, Coax
1-60350AD 6.5X UltraZoom, Aperture, Detent, Coax
1-60350D 6.5X UltraZoom, Detent, Coax
1-60190 6.5X UltraZoom, 12 mm FF
1-60190A 6.5X UltraZoom, 12 mm FF, Aperture
1-60190AD 6.5X UltraZoom, 12 mm FF, Aperture, Detent
1-60190D 6.5X UltraZoom, 12 mm FF, Detent
1-60191 6.5X UltraZoom, 3 mm FF, Coax
1-60191A 6.5X UltraZoom, 3 mm FF, Aperture, Coax
1-60191AD 6.5X UltraZoom, 3 mm FF, Aperture, Detent, Coax
1-60191D 6.5X UltraZoom, 3 mm FF, Detent, Coax
1-60920 6.5X Ultra Non Zoom, non FF, Coax
1-60255 6.5X Ultra Non Zoom, 3 mm FF, Coax

Body Tubes, Motorized and Ultrazoom motorized

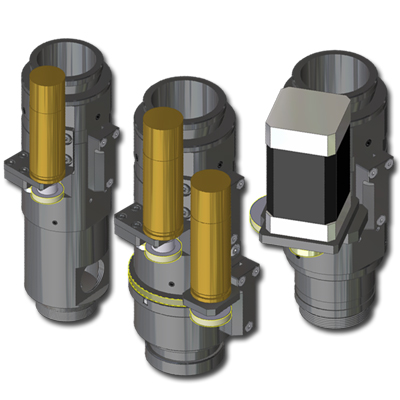

Unique design integrates magnetic Hall-Effect sensors to reference position location.

Users can choose to motorize the zoom and focus axis, or just the zoom.

Available motors: 2 Phase Stepping Motor (Faulhaber), 5 Phase Stepping Motor (Oriental, Vexta), DC Servo with Encoder (Faulhaber)

All HE units can be controlled via USB or RS-232 drivers with Windows and LabView “VI” software.

Specifications

P/n Description
1-62608 6.5X Zoom, Coax, Mot. Zoom 2 phase stepper
1-62319 6.5X Zoom, Coax, Mot. Zoom 2 phase stepper, Mot. 3 mm FF 2 phase stepper
1-62607 6.5X Zoom, Coax, Mot. Zoom 5 phase stepper
1-62526 6.5X Zoom, Coax, Mot. Zoom 5 phase stepper, 3 mm FF
1-62315 6.5X Zoom, Coax, Mot. Zoom 5 phase stepper, Mot. 3 mm FF 5 phase stepper
1-62609 6.5X Zoom, Coax, Mot. Zoom encoded servo
1-62524 6.5X Zoom, Coax, Mot. Zoom encoded servo, 3 mm FF
1-62525 6.5X Zoom, Coax, Mot. Zoom encoded servo, 3 mm FF
1-62311 6.5X Zoom, Coax, Mot. Zoom encoded servo, Mot. 3 mm FF encoded servo
1-62605 6.5X Zoom, Mot. Zoom 2 phase stepper
1-62523 6.5X Zoom, Mot. Zoom 2 phase stepper, 12 mm FF
1-62318 6.5X Zoom, Mot. Zoom 2 phase stepper, Mot. 12 mm FF 2 phase stepper
1-62604 6.5X Zoom, Mot. Zoom 5 phase stepper
1-62521 6.5X Zoom, Mot. Zoom 5 phase stepper, 12 mm FF
1-62314 6.5X Zoom, Mot. Zoom 5 phase stepper, Mot. 12 mm FF 5 phase stepper
1-61526 6.5X Zoom, Mot. Zoom DC, Mot. 3 mm FF DC
1-62606 6.5X Zoom, Mot. Zoom encoded servo
1-62522 6.5X Zoom, Mot. Zoom encoded servo, 12 mm FF
1-62310 6.5X Zoom, Mot. Zoom Encoded Servo, Mot. 12 mm FF DC Encoded Servo
1-60414 6.5X Zoom, Mot. 12 mm FF DC, Mot. Zoom DC
1-6265M 6.5X Zoom, Mot. Zoom DC
1-60123M 6.5X Zoom, 3 mm FF, Coax, Mot. Zoom DC
1-60135M 6.5X Zoom, 12 mm FF, Mot. Zoom DC
1-62638 6.5X UltraZoom, Coax, Mot. Zoom 2 phase stepper
1-62317 6.5X UltraZoom, Coax, Mot. Zoom 2 phase stepper, Mot. 3 mm FF 2 phase stepper
1-62644 6.5X UltraZoom, Coax, Mot. Zoom 5 phase stepper
1-62645 6.5X UltraZoom, Coax, Mot. Zoom 5 phase stepper, 3 mm FF
1-62313 6.5X UltraZoom, Coax, Mot. Zoom 5 phase stepper, Mot. 3 mm FF 5 phase stepper
1-60350M 6.5X UltraZoom, Coax, Mot. Zoom DC
1-60191M 6.5X UltraZoom, Coax, Mot. Zoom DC, 12 mm FF
1-60556 6.5X UltraZoom, Coax, Mot. Zoom DC, Mot. 3 mm FF DC
1-62632 6.5X UltraZoom, Coax, Mot. Zoom encoded servo
1-62633 6.5X UltraZoom, Coax, Mot. Zoom encoded servo, 3 mm FF
1-62639 6.5X UltraZoom, Coax, Mot. Zoom encoded servo, 3 mm FF
1-62309 6.5X UltraZoom, Coax, Mot. Zoom encoded servo, Mot. 3 mm FF encoded servo
1-62637 6.5X UltraZoom, Mot. Zoom 2 phase stepper
1-62517 6.5X UltraZoom, Mot. Zoom 2 phase stepper, 12 mm FF
1-62316 6.5X UltraZoom, Mot. Zoom 2 phase stepper, Mot. 12 mm FF 2 phase stepper
1-62643 6.5X UltraZoom, Mot. Zoom 5 phase stepper
1-62519 6.5X UltraZoom, Mot. Zoom 5 phase stepper, 12 mm FF
1-62312 6.5X UltraZoom, Mot. Zoom 5 phase stepper, Mot. 12 mm FF 5 phase stepper
1-60190M 6.5X UltraZoom, Mot. Zoom DC, 12 mm FF
1-60349M 6.5x UltraZoom, Mot. Zoom DC, non FF
1-62631 6.5X UltraZoom, Mot. Zoom encoded servo
1-62516 6.5X UltraZoom, Mot. Zoom encoded servo, 12 mm FF
1-62308 6.5X UltraZoom, Mot. Zoom Encoded Servo, Mot. 12 mm FF DC Encoded Servo



Adapter Tubes

An adapter tube is a required component for the complete Zoom 6000.

Adapter tubes are available in magnifications range from 0.5X to 5.0X.

Also availabe in compressed “mini” and “short” versions or choose a right angle adapter

and mount to vary the orientation and optical path of the system.

To obtain a non-inverted right angle image, consider using the (NIRA) adapter.

NIRA adapters must be fitted to the Zoom 6000 body tubes in order to maintain path length.

Specifications

P/n Description
1-60439 0.5X Standard Adapter
1-6020 0.67X Standard Adapter
1-6015 1.0X Standard Adapter
1-6218 1.0X Standard Adapter – Telescoping
1-6030 2.0X Standard Adapter
1-6105 5.0X Standard Adapter
1-62629 0.5X Mini Adapter – Telescoping
1-61001 0.67X Mini Adapter – Telescoping
1-61400 1.0X Mini Adapter (No thread. Standard back focus adjustment)
1-61387 1.33X Mini Adapter – Telescoping
1-62136 2.0X Mini Adapter
1-61390 2.0X Mini Adapter – Telescoping
1-6245 1.0X Short Adapter
1-6233 2.0X Short Adapter
1-62831 3.5X Short Adapter
1-62922 2X F-mount Adapter tube
1-63218 2X F-mount Adapter tube for Right Angle
1-60060 0.71X Right Angle Adapter
1-6118 1.0X Right Angle Adapter
1-61997 1.0X Right Angle Adapter – Telescoping
1-6120 2.0X Right Angle Adapter
1-6187 5.0X Right Angle Adapter
1-63218 2X F-mount Adapter tube for Right Angle
1-60172 0.67X Non Inverting Right Angle Adapter
1-60175 1.0X Non Inverting Right Angle Adapter
1-60182 1.0X Non Inverting Right Angle Adapter – Telescoping
1-60185 1.0X Non Inverting Right Angle Adapter – Telescoping
1-60188 5.0X Non Inverting Right Angle Adapter
1-60165 Non Inverting Right Angle Mount w/ Prism – (Requires NIRA adapter tubes)
1-6080 Right Angle Mount-Requires right angle adapter tubes



Lens Attachment

Lens attachments thread onto the bottom of the zoom system and can

extend the working distance out to 350 mm or pull it in as close as 35

mm. The extending lenses (.75X, .5X, and .25X) decrease the overall

magnification, and increase the field of view. The shortening lenses (1.5X,

and 2.0X) increase the magnification and decrease the field of view. As the

working distance goes from long to short, the “taking NA” of the system

increases, resulting in an increase in resolving power.

Right Angle and Non-Inverting Right Angle attachments are also available

Specifications

P/n Description
1-6044 0.25X Lens Attachment
1-60110 0.5X Lens Attachment
1-60111 0.75X Lens Attachment
1-60112 1.5X Lens Attachment
1-60113 2.0X Lens Attachment
1-60640 UltraZoom Converter Lens
1-62866 Right Angle Lens Attachment
1-61595 0.5X Non Inverting Right Angle Viewer (131 mm working distance)
1-61217 0.75X Non Inverting Right Angle Viewer (69 mm working distance)
1-60869 1.5X Non Inverting Right Angle Viewer (7 mm working distance)



Power Controller

Utilized when a motorized zoom is used.

Controllers are necessary to drive the motor.

Power supplies are required to power the controller and drivers

Specifications

P/n Description
1-62420 2 Phase Enclosure
2-62577 2 Phase PCB Driver Kit
1-62506 5 Phase Enclosure
2-62590 5 Phase Stepper PCB
1-62508 Servo with Encoder Enclosure
2-62509 Servo with Encoder PCB
1-62823 HE Manual Motor Controller
1-60564 DC motor driver
8-62503 Domestic Power Supply (120 Vac, 60 Hz)
8-62501 USB Cable (6 feet)
1-62504 Universal Power Supply (24Vdc @ 1.5A)
1-63018 Universal Power Supply (PSE mark, 24Vdc @ 1.25A)
8-62502 RS-232 Cable (6 feet)
2-62731 Brightlight II Control – board only (Digital)



Adapter Plates and Mounts

Adapter plates an be used with microscope stands from Nikon, Olympus, Meiji, Bausch & Lomb and Leica. For applications where vibration is of concern, flat mount options are available for more stability.

Universal clamps allows for more creative and flexible mounting solutions when integrating the zoom system into a machine or in a laboratory environment with limited space.

Specifications

P/n Description
1-60052 76 mm Adapter Plate for 6.5X
1-9620 82 mm Adapter Plate for 6.5X
1-6179 84 mm Adapter Plate for 6.5X
1-6055 6.5X Adapter Plate for B&L/Leica
1-60141 6.5X Adapter plate for Nikon MM11,MM22 Stand
1-62572 6.5X Flat Mount for use with Zoom 6000 motorized lenses
1-6270 Universal Mounting Clamp -Use on adapter tubes
3-60925 Nikon MM44 Mounting Kit -Requires 1X or 2X right angle adapter



NIR Lens System

The Zoom 6000 NIR system has been specifically coated to

offer high resolution and unparalleled sensitivity for capturing microscopic

images in the near infrared (NIR) wavelength band of 700-1550nm.

Motorized lenses are available upon request.

Specifications

P/n Description
1-60110-IR 0.5X Lens Attachment, Infrared
1-60111-IR 0.75X Lens Attachment, Infrared
1-60112-IR 1.5X Lens Attachment, Infrared
1-60113-IR 2.0X Lens Attachment, Infrared
1-6265A-IR 6.5X Zoom, Aperture, Infrared
1-6265-IR 6.5X Zoom, Infrared
1-60123-IR 6.5X Zoom, 3 mm FF, Coax, Infrared
1-60135-IR 6.5X Zoom, 12 mm FF, Infrared
1-60190-IR 6.5X UltraZoom, 12 mm FF, Infrared
1-60191-IR 6.5X UltraZoom, 3 mm FF, Coax, Infrared
1-60349-IR 6.5X UltraZoom, non FF, Infrared
1-60349D-IR 6.5X UltraZoom, non FF, Dentent, Infrared
1-60350-IR 6.5X UltraZoom, Coax, Infrared
1-60172-IR 0.67X Non Inverting Right Angle Adapter, Infrared
1-60165-IR Non Inverting Right Angle Mount w/ Prism, Infrared
1-60175 1.0X Non Inverting Right Angle Adapter
1-60182 1.0X Non Inverting Right Angle Adapter,Telescoping
1-60185-IR 2.0X Non Inverting Right Angle Adapter, Infrared
1-60439-IR 0.5X Standard Adapter, Infrared
‘1-6015 1.0X Standard Adapter, Infrared
’1-6218 1.0X Standard Adapter,Telescopic, Infrared
1-61001-IR 0.67X Mini Adapter, Telescoping, Infrared
1-60189-IR 1.0X Mini Adapter, Infrared
1-61390-IR 2.0X Mini Adapter, Telescoping, Infrared
‘1-6118 1.0X Right Angle Adapter
1-61997 1.0X Right Angle Adapter, Telescoping
1-63218-IR 2X F-mount Adapter Tube for Right Angle, Infrared
1-62922-IR 2X F-mount Adapter Tube, Infrared



Accessories and Polarizers

Specifications

P/n Description
1-60981 1/4 Wave Plate Assembly for use with Co-Axial Zoom
2-62827 6.5X Simple Polarizer
1-60816 Analyzer
1-51560 Xtender
3-51564 Xtender- 6X Zoom Thread Adapter
3-51563 Xtender – 20 mm spacer
1-60068 1X Reticle Projector – 21 mm diameter reticle sold separately
1-6050 Eye Piece Holder – 23 mm microscope eye piece sold separately
1-60380 Laser Injection Port
1-60370 Auxiliary Viewing Port
