 Meiji Techno's new
upright incident and transmitted light brightfield metallurgical
microscope line is the new and cost-effective MT8000 Series.
The MT8000 Series employs all new and improved Plan Episcopic optical
system.
Meiji Techno's ICOS™ (Infinity
Corrected Optical System) makes the observation and evaluation of
metallurgical specimens fast and easy while delivering an excellent
cost-to-performance ratio.
The MT8000 Series features
include:
- Computer Aided
Design
- Ergonomically positioned controls
- Comfortable Siedentopf viewing head
- 30W Vertical Koehler Illuminator with
auto voltage sensing power supply
- 30W Transmitted Koehler Illuminator with
auto voltage sensing power supply
- Brightfield Reflected Light and
Brightfield Transmitted Light observation modes
- Optional
Ergonomic binocular
viewing head
available
|
VIEWING
HEADS

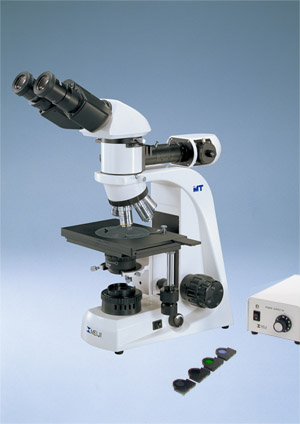

Model MA815 is the Siedentopf-type binocular head

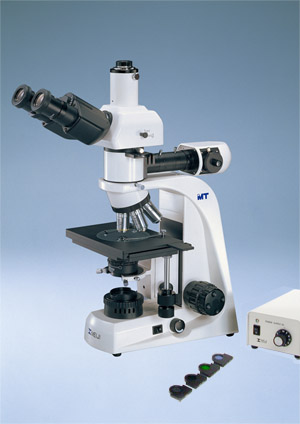

and Model MA816 is the trinocular head for camera integration. Each head
has the eyetubes inclined at 30° with the left
eyetube having graduated diopter settings. The interpupillary distance is
adjustable between 53mm - 75mm. An 80/20 beamsplitter for the trinocular
tube can be engaged for photo work. The optional Ergonomic Viewing Head
has the inclination adjustable from 10 to 50 degrees to fit any size
user.
EYEPIECES
10X Super
Widefield High Eyepoint eyepieces F.N.22 are standard, and 15X and 20X
eyepieces are available as an option. A Super Widefield High Eyepoint 10X
focusable eyepiece that accepts 25mm reticules is also
available.
|
|
OBJECTIVE
CHANGER

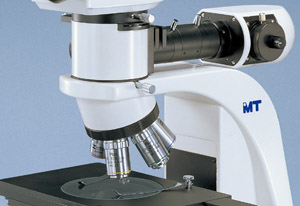

The smooth-operating, ball
bearing mounted, quintuple nosepiece provides effortless objective
changes.
OBJECTIVES
Meiji
Techno offers an assortment of Plan Epi Infinity Corrected objectives for
Brightfield work.
STAGE
Ceramic
coated left or right-handed, flat top stage measures 191mm x 126mm with
x-y travel: 100mm(X) x 100mm(Y). Ergonomically positioned coaxial drop
down controls.
ILLUMINATION
Powerful 30
watt halogen transmitted and incident reflected illumination systems
provides enhanced image quality and brightness for the observation of
metallurgical specimens.
PHOTOMICROGRAPHY
Meiji Techno
offers a broad range of digital video cameras like the CC21000 1.4MP CCD camera, which offers a cost-effective, versatile
solution for materials science and educational
professionals. With the
included software, one can preview and capture still shots and video
with micrometer overlays to a PC or Mac with USB port. More
information available here.
|
MT8000 Series
Models
Model |
Head |
Illumination |
Eyepieces |
Objectives |
Stage |
|
Bino. |
30W Vertical Koehler
+ 30W Transmitted Koehler |
SWH10x
FN22 |
Plan Epi 5x, 10x, 20x, 50x |
Ceramic Coated Fixed
Flat-top left or right-handed controls |
|
Trino. |
|
MT8000 Series Components &
Accessories
|
Viewing Heads |
Part
Number |
Description |
| MA815 |
Siedentopf type binocular
head. 30 degree inclination, 30.0mm ø eyetubes.
(MT8000) |
| MA816 |
Siedentopf type
trinocular head. 30 degree inclination, 30.0mm ø eyetubes.
(MT8100) |
| MA957 |
Siedentopf type Ergonomic
binocular head. 10 - 50 degree adjustable inclination, 30.0mm ø eyetubes.
(optional) |
| MA979 |
Trinocular head -
Siedentopf type, erect image with sliding 0/100
beamsplitter, inclined at 30 degrees, I.P. adjustment 53mm
to 75mm, graduated diopter on left eyetube.
(optional) |
Eyepieces |
Part
Number |
Description |
| MA817 |
SWH10X Super Widefield High
Eyepoint eyepiece, FN22 (standard) (accepts 25mm
reticle) |
| MA818 |
SWH15X Super Widefield
High Eyepoint eyepiece, FN16 (optional) (accepts 19mm
reticle) |
| MA819 |
SWH20X Super Widefield
High Eyepoint eyepiece, FN12 (optional) (accepts 19mm
reticle) |
| MA859 |
SWH10X-F Super Widefield
High Eyepoint focusing, FN22 (optional) (accepts 25mm
reticle) |
Plan Epi * Long Working Distance * Brightfield
Objectives -
Infinity Corrected - F = 200mm |
| MA920 |
LWD Plan Epi 20X objective,
NA: 0.40, Working Distance = 11.0mm (optional) |
| MA921 |
LWD Plan Epi 50X,
objective, NA: 0.55, Working Distance = 7.5mm
(optional) |
Plan Epi Brightfield Objectives - Infinity Corrected - F =
200mm |
| MA870 |
Plan Epi 5X objective, NA:
0.10, Working Distance = 20.0mm (included) |
| MA871 |
Plan Epi 10X, objective, NA:
0.25, Working Distance = 7.48mm (included) |
| MA872 |
Plan Epi 20X, objective, NA:
0.40, Working Distance = 5.2mm (included) |
| MA873 |
Plan Epi 50X, objective, NA:
0.75, Working Distance = 0.38mm (included) |
| MA874 |
Plan Epi 100X, objective,
NA: 0.90, Working Distance = 0.37mm (optional) |
Stage |
| MA942 |
Ceramic coated flat-top
stage, 191mm X 126mm, 100mm X 100mm, X-Y movement, with
right hand drop-down coaxial controls and 94.5mm diameter clear
glass stage plate. (Included in Model MT8000 and
MT8100) |
Condenser |
| MA910/05 |
Substage condenser with
iris diaphragm, dovetail mount (For MT8000 & MT8500)
(included) |
Filters |
| MA497 |
Polarizing filter, 20 mm
in-mount (included) |
| MA475/05 |
Blue clear filter, LB100,
20mm in-mount (included) |
| MA476 |
Green clear filter, 20mm
in-mount (included) |
| MA774 |
ND50 Neutral density filter
20mm in-mount (transmission: 50%) (included) |
| MA857/05 |
Green clear filter for
transmitted illuminator, 44mm (optional) |
| F-V73990 |
Red clear filter in
mount for bichromatic mode
(optional) |
Misc. Parts &
Accessories |
| MA809/10 |
Replacement 115V AC Power
cord with plug (USA) |
| MA809/20 |
Replacement 220V AC Power
cord with plug (Eurocord) |
| MA809/30 |
Replacement 240V AC Power
cord with plug (UK) |
| MA958 |
Photo/Video attachment with
80/20 beamsplitter, fits MA957 only |
| MA942 |
Ceramic coated flat top
stage with glass plate insert (included) |
| MA711 |
Dust Cover for MT8000 Series
(included) |
| MA927 |
Vertical Koehler Illuminator
6V 30W Halogen (included) |
| MA927/05 |
Power Supply for MA927, 100V
- 240V (included) |
| MA326 |
Spare bulb for halogen
transmitted illuminator, 6V, 30W |
| MA327 |
Spare fuse for halogen
transmitted or vertical illuminator, 3A |
| MA906 |
Eyeshield (ea) for MA817 10x
eyepieces (included) |
|
|
