EMZ - Zoom Stereo Microscopes
|
|
|
 |
| |
 |

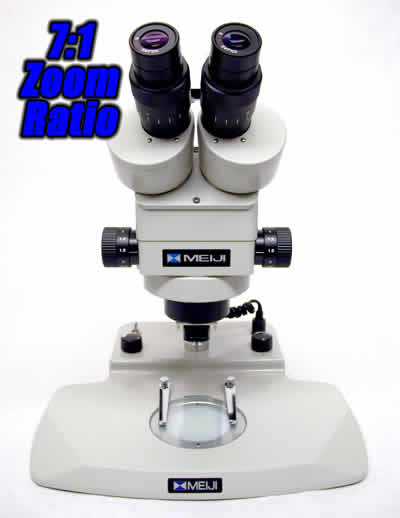

| Model EMZ-13TR with Model PKL-2 LED Illuminated Pole
Stand |
The
body is the heart of our modular zoom stereo microscope design. It
contains the objectives and prisms that capture the image of the specimen,
magnify it, and direct it to the eyetubes. The body by itself cannot be
used to view an object; it also needs eyepieces that further magnify the image and allow the viewer to see, and it must be
mounted on a stand that has a focus
mechanism for raising and lowering the body.
Zoom
stereo microscope bodies are the most flexible because they offer
a wider range of magnification than turret (EMT)
or fixed (EMF) bodies.
Much like the zoom lens on a camera, zoom objectives increase and decrease
magnification progressively, causing the specimen to grow or shrink
smoothly in the eyes of the viewer. Copies of our zoom microscopes are
made in many countries throughout the world. However, our products hold their parfocality or focus throughout the zoom range and not all
microscope brands seem to do this which is one reason why our products
retain their value for many, many years.
Meiji Techno offers EM
Series zoom stereo microscope bodies with a wide range of magnifications and working distances. All EM
bodies come with dust covers and rubber eyeshields. Eyepieces are sold
separately and we have a wide selection to
offer.
 =
Indicates a distinctive
feature. |
|
EMZ-5 and EMZ-5TR
Body: |
Binocular (EMZ-5) or Trinocular
(EMZ-5TR) rotatable 360° |
Zoom
Ratio: |
6.5:1 |
Zoom Range: |
0.7x - 4.5x |
Zoom Control: |
Dual, graduated, bilateral
mount |
Magnification: |
7x - 45x (10x
eyepieces) |
Field of View: |
32mm - 5.1mm |
Working distance: |
93mm |
Eyetube
Inclination: |
45° |
Interpupillary
Distance: |
54mm - 75mm |
Dioptric
Adj: |
Dual (+/- 5 diopters) |
Extended Mag
Range: |
2.1x - 270x |
Extended Working
Distances: |
34mm -
251mm |
|

EMZ-5 EMZ-5TR
|
EMZ-5D and
EMZ-5TRD
Stereo Zoom Bodies with Detent for
Measuring
Body: |
Binocular (EMZ-5D) or Trinocular
(EMZ-5TRD) rotatable 360° |
Zoom
Ratio: |
6.5:1 |
Zoom Range: |
0.7x - 4.5x |
Zoom Control: |
Dual, graduated, bilateral
mount |
Magnification: |
7x - 45x (10x
eyepieces) |
Field of View: |
32mm - 5.1mm |
Working distance: |
93mm |
Eyetube
Inclination: |
45° |
Interpupillary
Distance: |
54mm - 75mm |
Dioptric
Adj: |
Dual (+/- 5 diopters) |
Extended Mag
Range: |
2.1x - 270x |
Extended Working
Distances: |
34mm -
251mm |
|
EMZ-5D
EMZ-5TRD
|
EMZ-10
Body: |
Binocular rotatable
360° |
Zoom
Ratio: |
6.5:1 |
Zoom Range: |
0.7x - 4.5x |
Zoom Control: |
Dual, graduated, bilateral
mount |
Magnification: |
7x - 45x (10x
eyepieces) |
Field of View: |
32mm - 5.1mm |
Working distance: |
110mm |
Eyetube
Inclination: |
45° |
Interpupillary
Distance: |
54mm - 75mm |
Dioptric
Adj: |
Dual (+/- 5 diopters) |
Extended Mag
Range: |
2.1x - 270x |
Extended Working
Distances: |
45mm - 326mm |
|
EMZ-10
|
EMZ-8TR
and EMZ-8TRD
( EMZ-8TRD
has detent for measuring )
Body: |
Trinocular (EMZ-8TR) or with detent
(EMZ-8TRD) rotatable 360° |
Zoom
Ratio: |
6.5:1 |
Zoom Range: |
0.7x - 4.5x |
Zoom Control: |
Dual, graduated, bilateral
mount |
Magnification: |
7x - 45x (10x
eyepieces) |
Field of View: |
32mm - 5.1mm |
Working distance: |
104mm |
Eyetube
Inclination: |
45° |
Interpupillary
Distance: |
54mm - 75mm |
Dioptric
Adj: |
Dual (+/- 5 diopters) |
Extended Mag
Range: |
2.1x - 270x |
Extended Working
Distances: |
38mm -
300mm |
|
EMZ-8TREMZ-8TRD
|
EMZ-8U, EMZ-8UD & EMZ-8TRU with NVI™ (Near Vertical
Illumination)
Body: |
Binocular
(EMZ-8U) Binocular with Detent (EMZ-8UD) or Trinocular,
(EMZ-8TRU).
Each rotate 360° |
Zoom
Ratio: |
6.5:1 |
Zoom Range: |
0.7x - 4.5x |
Zoom Control: |
Dual, graduated, bilateral
mount |
Magnification: |
7x - 45x (10x
eyepieces) |
Field of View: |
32mm - 5.1mm |
Working distance: |
104mm |
Eyetube
Inclination: |
45° |
Interpupillary
Distance: |
54mm - 75mm |
Dioptric
Adj: |
Dual (+/- 5 diopters) |
Extended Mag
Range: |
2.1x - 270x |
Extended Working
Distances: |
38mm -
300mm |
Note: FL150/115 and FL150/12 Fiber Optic Light Source & Light Guide required
as shown on right. |
|
As shown :
EMZ-8TRU body with MA502 Super Wide Field
10X eyepieces along with a Model "P" Stand and FL150/115 light source with the FL150/12 light
pipe. |
EMZ-8TRU
with selected
options
installed
|
|
|
EMZ-12 and
EMZ-12TR with NVI
(Near
Vertical Illumination)
Body: |
Binocular
(EMZ-12) or Trinocular (EMZ-12TR) rotatable 360° |
Zoom
Ratio: |
3.6:1 |
Zoom Range: |
0.4x - 2.5x |
Zoom Control: |
Dual, graduated, bilateral
mount |
Magnification: |
4x
- 25x (10x eyepieces) |
Field of View: |
57mm - 9.2mm |
Working distance: |
185mm |
Eyetube
Inclination: |
45° |
Interpupillary
Distance: |
54mm - 75mm |
Dioptric
Adj: |
Dual (+/- 5 diopters) |
Extended Mag
Range: |
2.5x - 75x |
Extended Working
Distances: |
185mm -
287mm |
|
EMZ-12 |
EMZ-12TR |
 |
At left :
EMZ-12TR body with MA502 Super Wide Field
10X eyepieces along with a Model "PX" Stand and FL150/115 light source with the FL150/12 light
pipe |
|
|
Body: |
Binocular (EMZ-13) or
Trinocular (EMZ-13TR) rotatable 360° |
Zoom
Ratio: |
7:1 |
Zoom Range: |
1.0x - 7x |
Zoom Control: |
Dual, graduated, bilateral
mount |
Magnification: |
10x - 70x (10x
eyepieces) |
Field of View: |
23mm - 3.14mm |
Working distance: |
90mm |
Eyetube
Inclination: |
45° |
Interpupillary
Distance: |
54mm - 75mm |
Dioptric
Adj: |
Dual (+/- 5 diopters) |
Extended Mag
Range: |
3x - 420x |
Extended Working
Distances: |
32mm -
230mm |
|

EMZ-13EMZ-13TR
|
EMZ-9
Body: |
Binocular rotatable
360° |
Zoom
Ratio: |
6.5:1 |
Zoom Range: |
0.7x - 4.5x |
Zoom Control: |
Dual, graduated, bilateral
mount |
Magnification: |
7x - 45x (10x
eyepieces) |
Field of View: |
32mm - 5.1mm |
Working distance: |
93mm |
Eyetube
Inclination: |
60° |
Interpupillary
Distance: |
54mm - 75mm |
Dioptric
Adj: |
Dual (+/- 5 diopters) |
Extended Mag
Range: |
2.1x - 270x |
Extended Working
Distances: |
34mm -
251mm |
|
EMZ-9
|
EMZ-2 and
EMZ-2TR
Body: |
Binocular (EMZ-2) or Trinocular
(EMZ-2TR) rotatable 360° |
Zoom
Ratio: |
6.5:1 |
Zoom Range: |
0.7x - 4.5x |
Zoom Control: |
Graduated, knurled ring |
Magnification: |
7x - 45x (10x
eyepieces) |
Field of View: |
32mm - 5.1mm |
Working distance: |
93mm |
Eyetube
Inclination: |
45° |
Interpupillary
Distance: |
54mm - 75mm |
Dioptric
Adj: |
Dual (+/- 5 diopters) |
Extended Mag
Range: |
2.1x - 270x |
Extended Working
Distances: |
34mm -
251mm |
|

EMZ-2EMZ-2TR
|
EMZ-1 Turret Zoom (discontinued)
Body: |
Binocular rotatable
360° |
Zoom
Ratio: |
3:1 |
Zoom Range: |
1x - 3x |
Zoom Control: |
Graduated, knurled ring |
Magnification: |
10x - 30x (10x
eyepieces) |
Field of View: |
23mm - 7.7mm |
Working distance: |
93mm |
Eyetube
Inclination: |
45° |
Interpupillary
Distance: |
54mm - 75mm |
Dioptric
Adj: |
Dual (+/- 5 diopters) |
Extended Mag
Range: |
3x - 180x |
Extended Working
Distances: |
34mm - 251mm |
|
EMZ-1
|
Z-7100
Body: |
Binocular rotatable
360° |
Zoom
Ratio: |
6.5:1 |
Zoom Range: |
0.7x - 4.5x |
Zoom Control: |
Dual, graduated, bilateral
mount |
Magnification: |
7x - 45x (10x
eyepieces) |
Field of View: |
32mm - 5.1mm |
Working distance: |
110mm |
Eyetube
Inclination: |
90° |
Interpupillary
Distance: |
54mm - 75mm |
Dioptric
Adj: |
Dual (+/- 5 diopters) |
Extended Mag
Range: |
2.1x - 270x |
Extended Working
Distances: |
45mm -
332mm |
|
Z-7100
|
|
|
|
