Description

● Excellent infinite optical system
● Infinity plan achromatic objectives
● Excellent Illumination system
● Integrative machinery structure
● Ergonomic and comfortable operation with low position control knob

Product No.

Picture Preview	P/N	Name	Description

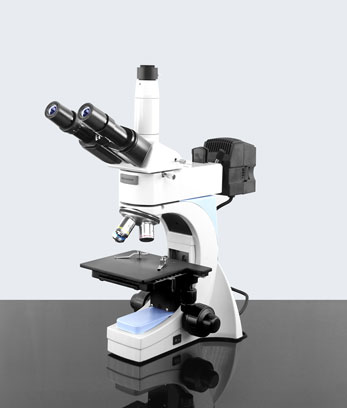

	MT1000T	Metallurgical Microscope	Trinocular head, WF10X/18 Eyepiece, Infinity plan achromatic objectives: 4X/10X/20X/40X; Quadruple nosepiece, Cross table mechanical stage: 150x140mm, Illumination: Kohler illumination
	MT102010	10X Eyepieces (Pair)	WF10X /18 for MT1000/MT1000T Metallurgical Microscope

Specifications

Optical System: Infinite optical system
Viewing head: Binocular and trinocular head
Eyepieces: WF 10X/18mm (standard), WF 8X/18mm and WF 12.5X/15mm for option
Infinity Plan Achromatic Objectives: 4X, 10X, 20X, 40X, 80X (optional)
Optional Adjustable Eyepieces: 10X, 15X and 20X
Magnification: 32X-1000X
Field of View: 0.1875mm-4.5mm
Nosepiece: Quadruple nosepiece
Focusing: Coaxial fine and coarse adjustment
Mechanical Stage: Stage size 150×140mm; Movement: 75×50mm
Illumination: Halogen lamp 6V20W, with continuously adjustable intensity
Filter: Blue, green, yellow and ground glass

Datasheet (Optical Datasheet )

Plan Achromatic Objective Lens	Working Distance (mm)	Eyepieces
		10X(Φ18mm)		8X(Φ18mm)		12.5X(Φ15mm)
		Mag.	FOV (mm)	Mag.	FOV (mm)	Mag.	FOV (mm)
4X	25.4	40X	4.5	32X	4.5	50X	3.75
10X	11.0	100X	1.8	80X	1.8	125X	1.5
20X	6.0	200X	0.9	160X	0.9	250X	0.75
40X	3.7	400X	0.45	320X	0.45	500X	0.357
80X	0.2	800X	0.225	640X	0.225	1000X	0.1875
