Description

● Working distance 5" to infinity
● Parfocal over entire zoom range
● Highest mag. 1.1X at 5" (at camera)

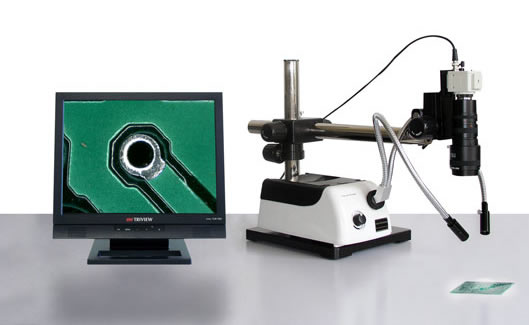

The Macro Zoom lens (Navitar) is a close- focusing macro video lens which is versatile and specifically designed to be used in applications where objects over 1" in diameter must be imaged. It offers unsurpassed clarity and parfocal zoom capabilities and is compatible with cameras 2/3" or smaller.

The Macro Zoom lens (Navitar) is ideal for quality assurance, biomedical imaging, or assembly applications where an easy-to-view, sharp and true-to-life magnified image of your product can mean the difference between a shippable, top-quality end product and a costly manufacturing failure.

Macro Zoom lens Navistar offers a 6:1 zoom ratio or a 6X magnification power over a focal range of 18 mm to 108 mm. It comes with a close-up lens for imaging at distances from 5" to 12". When the close-up lens is removed, the working distance extends from 24" to infinity. Focus and aperture control are standard Macro Zoom lens (Navitar) features. Navitar also offers an 18-108 mm Bayonet Mount Zoom Lens (3CCD Camera) or a Macro Zoom lens (Navitar) locking sleeve

Product No.

Picture Preview	P/N	Name	Description
	MZ511101	Macro Zoom Lens Navitar (Zoom 7000)	Close- focusing macro video lens, 6:1 zoom ratio or a 6X magnification power over a focal range of 18 mm to 108 mm. It comes with a close-up lens for imaging at distances from 5" to 12". When the close-up lens is removed, the working distance extends from 24" to infinity. Objective size = 100 mm x 50 mm, Camera format = 2/3"
	MZ511102	Macro Zoom Lens Navitar (Zoom 7010)	Imaging at distances from 7-12”. Working distance of 16” to infinity when the built-in close-up lens is removed. Very high resolution, C-mount is standard with CS-mount also available

Datasheet (Optical Datasheet )

Macro Zoom Lens (Navitar) Field of View High Magnification
W.D.	2/3"		1/2"		1/3"		1/4"
	High Mag. (H×V)	Low Mag. (H×V)	High Mag. (H×V)	Low Mag. (H×V)	High Mag. (H×V)	Low Mag. (H×V)	High Mag. (H×V)	Low Mag. (H×V)
5"	8×6	48×36	5.8×4.4	35×26.3	4.3×3.2	25.9×19.4	2.9×2.2	17.5×13.2
6"	10×7.5	60×45	7.3×5.5	43.8×32.9	5.4×4.1	32.4×24.3	3.7×2.8	21.9×16.5
7"	12×9	72×54	8.7×6.6	42.6×39.4	6.5×4.9	38.9×29.2	4.4×3.3	26.3×19.7
8"	14×10.5	84×63	10.2×7.7	61.3×46	7.6×5.7	45.5×34	5.1×3.9	30.7×23.0
9"	16×12	96×72	11.7×8.8	70.1×52.6	8.6×6.5	51.8×38.9	5.9×4.4	35.1×26.3
10"	18×13.5	108×81	13.1×99	78.8×59.1	9.7×7.3	58.3×43.7	6.6×5.0	39.4×29.6
11"	20×15	120×90	14.6×11	87.6×65.7	10.8×8.1	64.8×48.6	7.3×5.5	43.8×32.9
12"	22×16.5	132×99	16.1×12	96.4×72.3	11.9×8.9	71.3×53.5	8.1×6.0	48.2×36.2
Remove the Close-Up Lens
2'	42×30	252×180	30.7×21.9	184×131.4	22.7×21.1	136.1×97.2	15.4×11.0	92.0×65.7
2'6"	54×39	324×234	39.4×28.5	236.5×170.8	29.2×25.9	175×126.4	19.7×14.3	118.3×85.4
3'	66×48	396×288	48.2×35	289.1×210.2	35.6×25.9	213.8×155.5	24.1×17.5	114.6×105.1
3'6"	78×57	468×342	56.9×41.6	341.6×249.7	42.1×30.8	252.7×184.7	28.5×20.8	170.8×124.9
4'	90×66	540×396	65.7×48.2	394.2×289.1	48.6×36.5	291.6×213.8	32.9×24.1	197.1×144.6

(Taken from 2/3", 1/3 & 1/4" camera monitor systems with an approximate 10% overfill. All dimensions are in mm. Zoom adjustment comes with locking screw. Iris and focus adjustment can be modified for locking screws upon request.)
